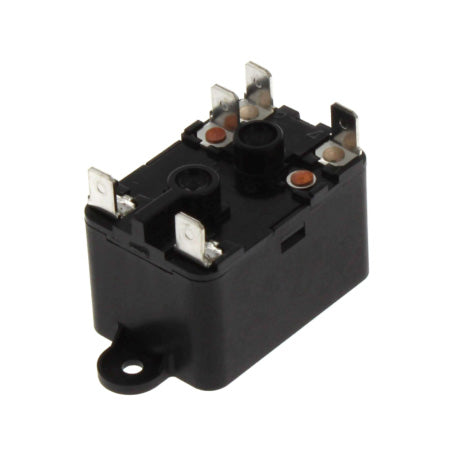

90-370: Fan Relay, 24 VAC Coil, 50/60 Hz, SPDT. Coil Data: 77 Ohms DC Resistance, 125 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush). Contact Ratings
90-370: Fan Relay, 24 VAC Coil, 50/60 Hz, SPDT. Coil Data: 77 Ohms DC Resistance, 125 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush). Contact Ratings

All photos are for representation purposes only and may not be a photo of the exact product being purchased

90-370: Fan Relay, 24 VAC Coil, 50/60 Hz, SPDT. Coil Data: 77 Ohms DC Resistance, 125 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush). Contact Ratings


EmersonSKU: 90-370
Price:
$10.25

Shipping calculated at checkout

Stock:
Available to Order

Warning Label

WARNING: May cause Cancer and reproductive harm - More information can be found at: www.P65Warnings.ca.gov

Description

EMRS Fan Relay, 24 VAC Coil, 50/60 Hz, SPDT. Coil Data: 77 Ohms DC Resistance, 125 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush). Contact Ratings: Inductive: 12 Amps. Continuous 60 Amps. Inrush @ 125 VAC; 8 Amps. Continuous, 48 Amps. Inrush @ 250 VAC., R


Additional Product Details

EMRS Fan Relay, 24 VAC Coil, 50/60 Hz, SPDT. Coil Data: 77 Ohms DC Resistance, 125 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush). Contact Ratings: Inductive: 12 Amps. Continuous 60 Amps. Inrush @ 125 VAC; 8 Amps. Continuous, 48 Amps. Inrush @ 250 VAC., Resistive: 18 Amps., Continuous @ 277 VAC



Downloads


White Rodgers - 90-370 - Brochure.pdf
