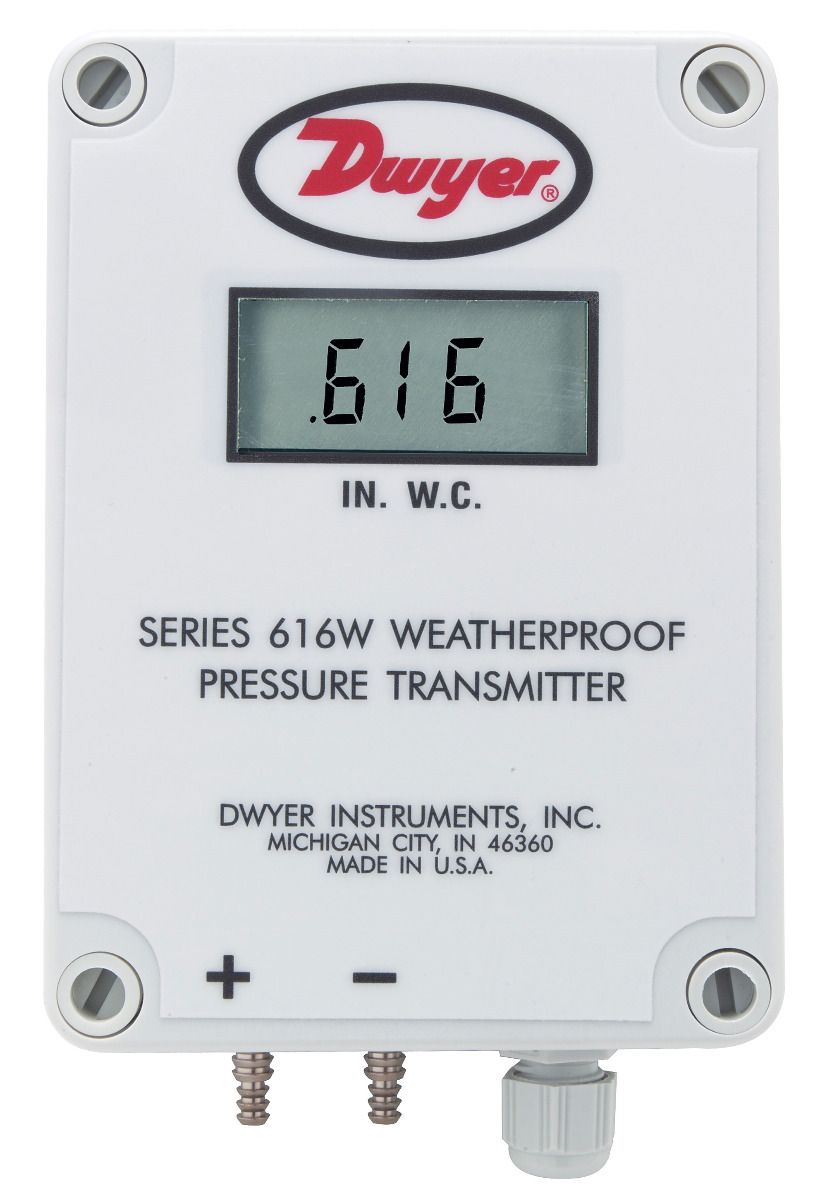

616WL-14-LCD: Differential pressure transmitter, range 1-0-1" w.c., NEMA 4X housing, with LCD display.
Description
DWYR Differential pressure transmitter, range 1-0-1" w.c., NEMA 4X housing, with LCD display.
Additional Product Details
The SERIES 616WL Differential Pressure Transmitter senses very low pressures of air and non-combustible, compatible gases and sends a standard 4-20 mA output signal. All models, including those featuring the 3 digit LCD digital read-out, are factory calibrated to specific ranges as listed in the chart below. Positive, negative and differential pressures can be measured within a full span accuracy of 0.50%. This weatherproof unit is enclosed in a polycarbonate case, designed to meet (IP66/NEMA 4X). Internal digital push button zero and span allow for quick and simple field calibration.
Downloads
E_43_WL.pdf
616WL.i.pdf
