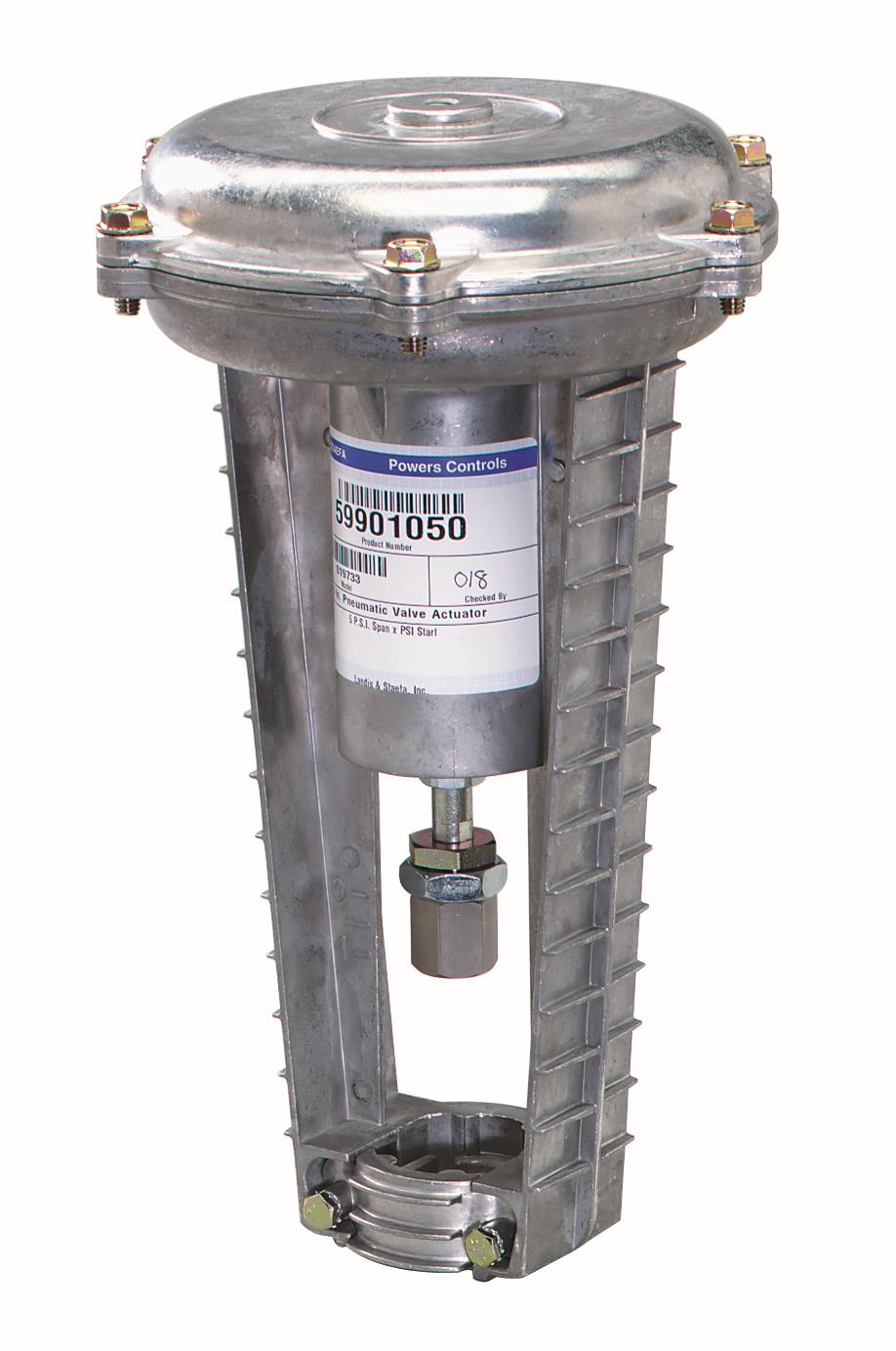

599-01050: 8"PNEUM ACT 3-5 PSI
Description
SIE 8"PNEUM ACT 3-5 PSI
Additional Product Details
This Flowrite 599 Series 8-inch Pneumatic Valve Actuator is designed to be used with Flowrite 599 Series valves in liquid and steam service applications. This valve actuator has a 3/4 in. stroke, a fixed span spring range of 5 psi, normal duty service of 25 to 300 F (-4 to 149 C), a max diaphragm pressure of 35 psi (241 kPa), and a 1/8 in. NPT air connection. Other features of this valve actuator include field-adjustable start point for sequencing and a completely enclosed actuator housing which protectsthe diaphragm, spring and start point adjuster.
Downloads
45066_en_6.pdf
