267-06166: 3" 3-way mixing 0-10vdc N.O. Stem up 24v ANSI Class 125
267-06166: 3" 3-way mixing 0-10vdc N.O. Stem up 24v ANSI Class 125

All photos are for representation purposes only and may not be a photo of the exact product being purchased

267-06166: 3" 3-way mixing 0-10vdc N.O. Stem up 24v ANSI Class 125


SiemensSKU: 267-06166
Price:
$2,656.49

Shipping calculated at checkout

Stock:
Available to Order

Warning Label

WARNING: May cause Cancer and reproductive harm - More information can be found at: www.P65Warnings.ca.gov

Description

SIE 3" 3-way mixing 0-10vdc N.O. Stem up 24v ANSI Class 125


Additional Product Details

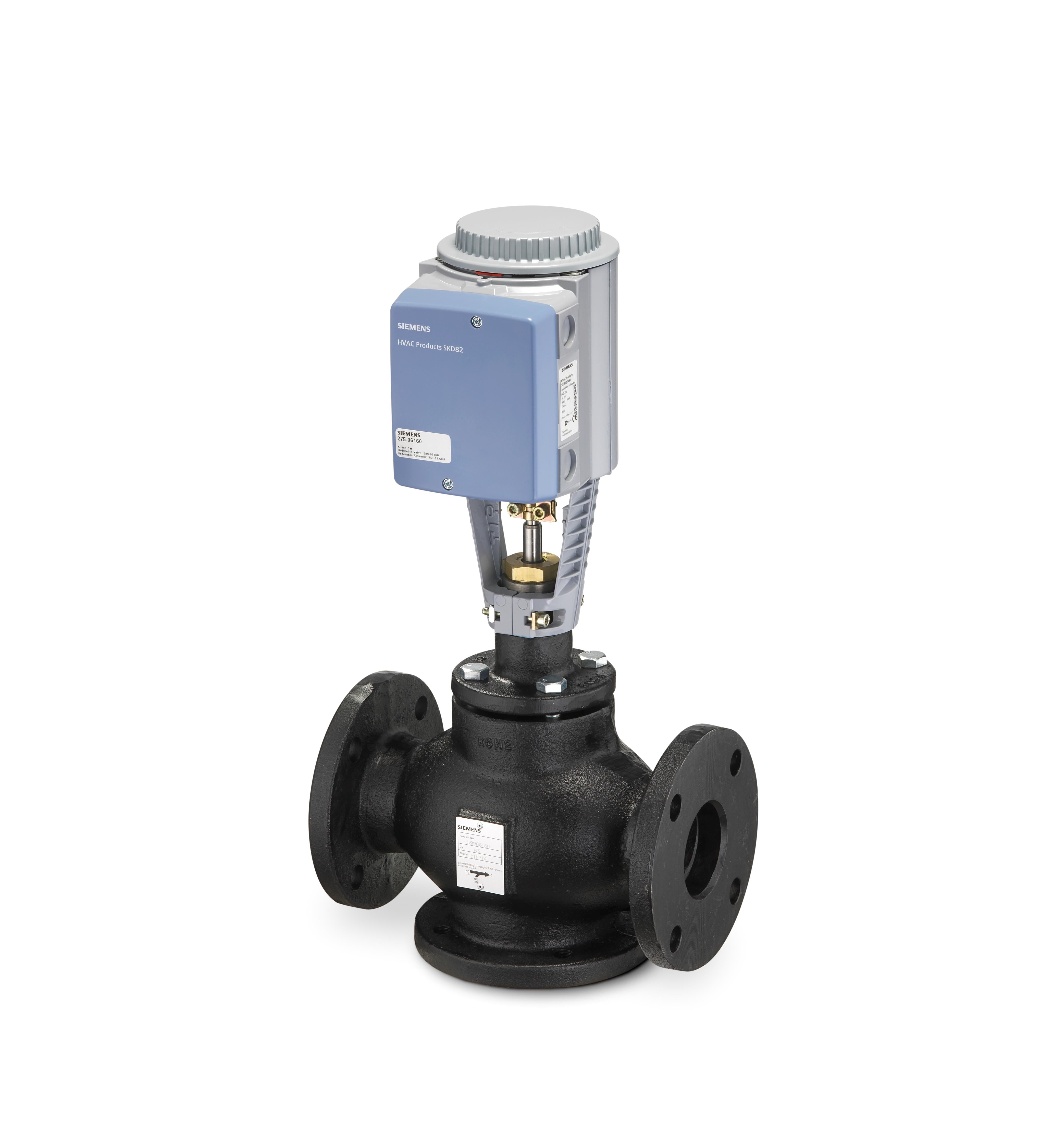

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electro-hydraulic actuator. The 3-way, mixing, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, stainless steel trim, and flanged end connections.



Downloads


45077_en_6.pdf

44958_en_3.pdf

A6V10276084_en_2.pdf

 A6V10305771_en_3.pdf
